- International transfer services
- Crew transfer
- Supply and spare parts runs
- Survey projects

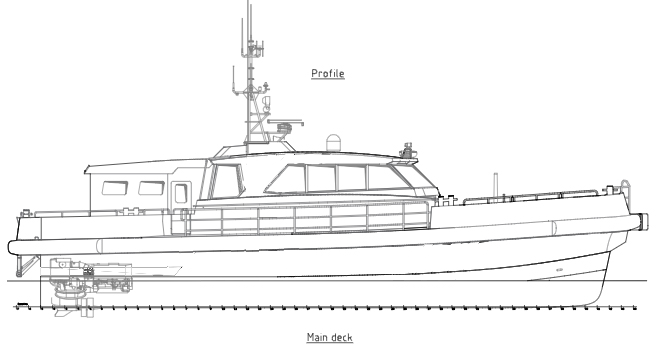

Blueprints of SC RUBY
Explore the detailed blueprints, showcasing its design, capabilities, and technical specifications
Contact Our
Fleet management department
SC RUBY Specifications
The vessel is a versatile monohull craft designed for crew transfer, pilotage, and survey operations, with 12 Pax capacity. It is also suitable for the transport of supplies and spare parts, making it ideal for offshore support roles. Equipped with gyro stabilization systems, the vessel ensures excellent motion compensation and comfort during operations. Its specialized monohull design enhances fuel efficiency and reduces its CO₂ footprint, supporting environmentally conscious operations. This vessel also features type-specific MOB (Man Overboard) recovery systems and advanced navigation and communication systems, fully compliant with class regulations.
Principal dimensions
| Length o.a. | 23,49 m |
| Length w.l. | 20,97 m |
| Breadth o.a. | 6,30 m |
| Draft max | 1,76 m |
| Max. deck load | 5 t |
| Pax capacity | 12 |
Vessel specifications
| Class/flag | BV / NL flag 200 nm – GMDSS A2 |
| Call sign / IMO | PHFM / 9626390 |
| Official Number | 41268J |
| Class ship type | Crew – pilot & survey vessel |
| Certifications | ISM and ISO certified by Lloyds Register Personnel are trained and familiarized according the high QHSE procedures |
Machinery / Propulsion
| Maximum speed | 30 knots |
| Speed eco | 25 knots |
| Main engines | 3x Volvo Penta D13 MP R4 – 800 hp / 588 kW each (IMO TIER III) |
| Auxiliary engines | Battery packs charged through inverters |
| Output main engines | 3 x 970 kW |
| Propulsion | 3x Volvo Penta IPS 1050 |
| Fuel cons. max | 420 l/hr |
| Fuel cons. eco | 350 l/hr |
Miscellaneous
- Stabilization : Equipped with a seakeeper 30-HD gyro stabilizer
- MOB systems : Type-specific Man Overboard (MOB) recovery systems
- Operational Capability: Ship-to-ship transfer enabled
- Deck crane
- Climate controlled storage
- 15 T bollard push
Accommodation
- 1 x single crew cabin & 1 x double cabins
