Survey / Diving Vessel DMC SAILOR for various international projects. This vessel is fully certified and ready to support Survey, Engineering, Salvage, Diving or Research projects.
- 24h accommodation
- Dimensions of the vessel provides an efficient and stable working platform
- Comfortably and economically cruise at 13 kts, survey speeds at 1-6 kts Extensively
- Re-fitted during winter 2008 / 2009
- Full complement of electronics equipment
- Cat 2 certification (can easily be upgraded to a Cat 1)

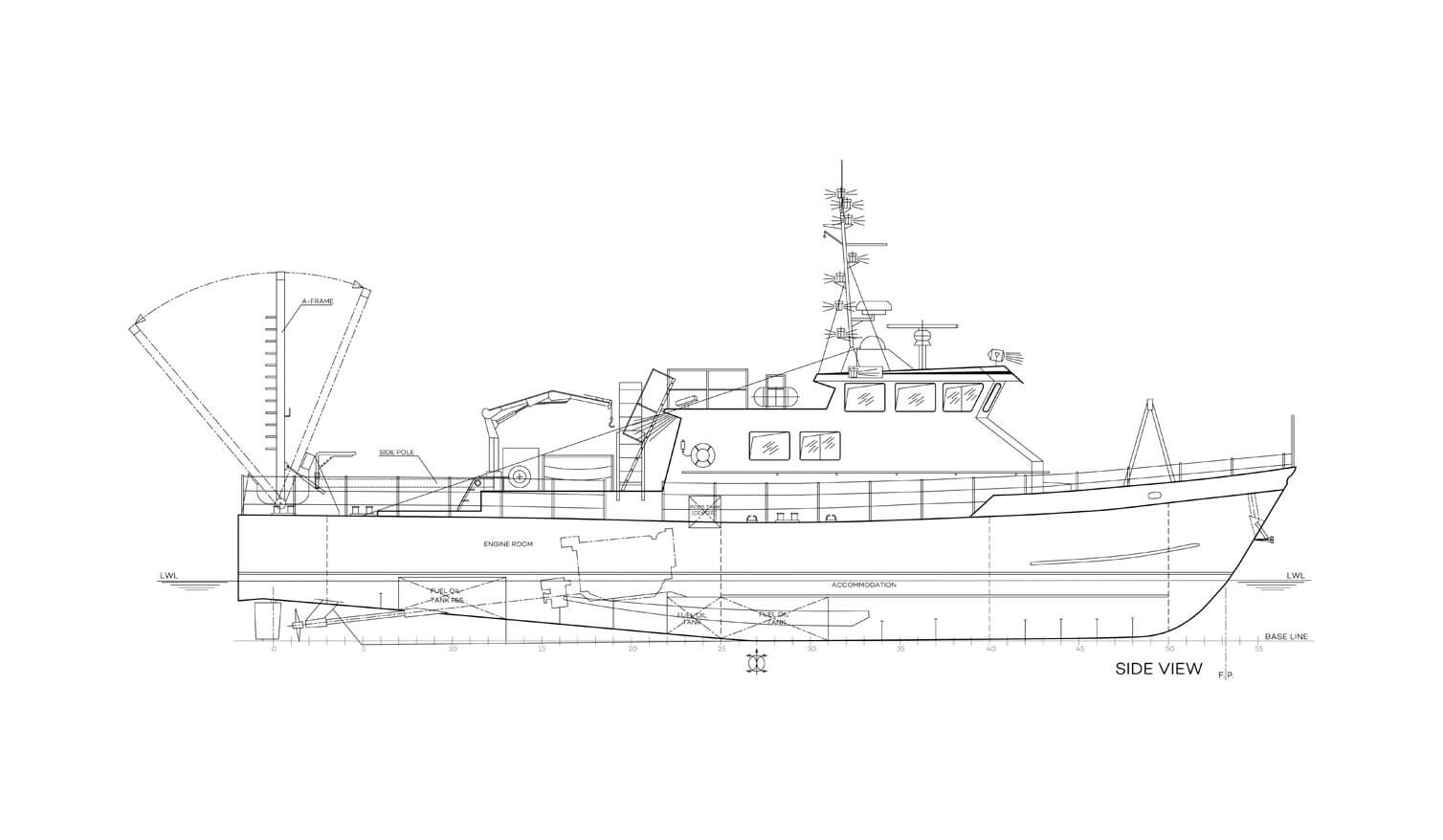

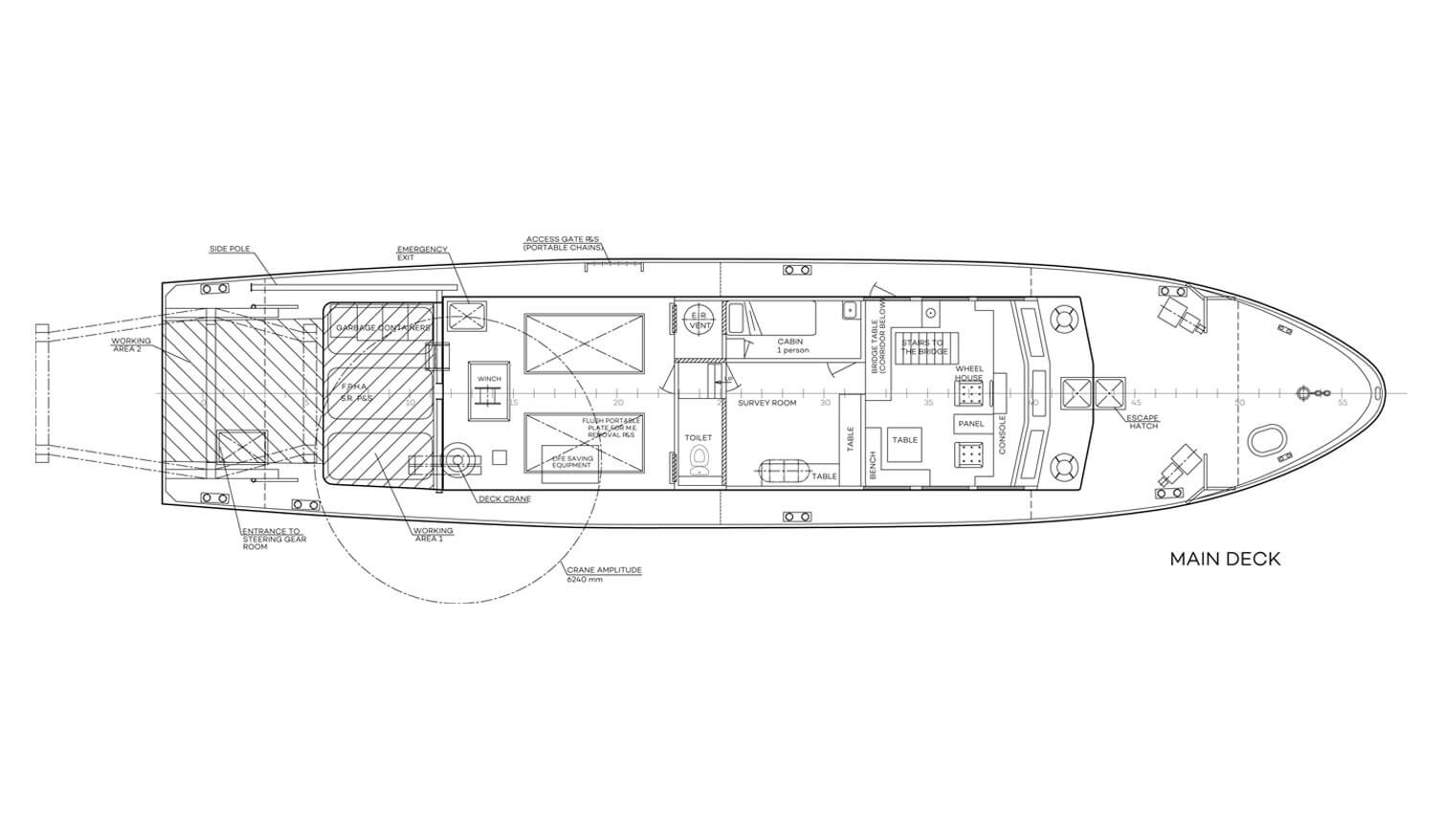

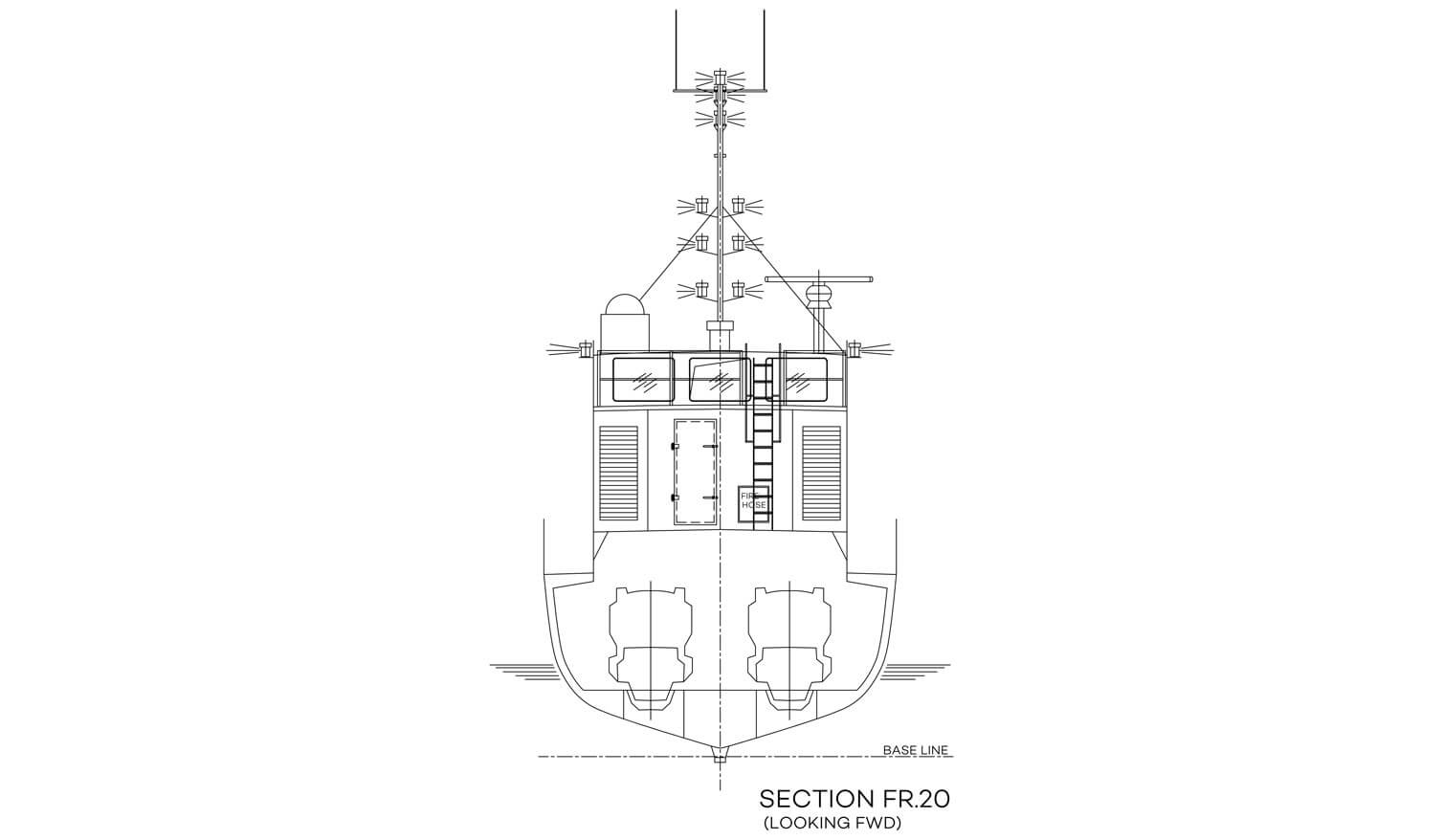

Blueprints of DMC Sailor
Explore the detailed blueprints, showcasing its design, capabilities, and technical specifications
Contact Our
Fleet management department
DMC Sailor Specifications
The DMC SAILOR is a fully certified Survey and Diving Support Vessel, designed to support a wide range of international offshore projects including survey, engineering, salvage, diving, and research operations. With 24-hour accommodation, the vessel provides a comfortable and efficient platform for extended missions. Its dimensions ensure excellent stability, offering a safe and practical working environment at sea. DMC SAILOR is a proven, cost-effective, and versatile choice for demanding offshore support roles.
Principal dimensions
| Length (LOA) | 23,57 m |
| Beam | 5,9 m |
| Draft | 1,8 m |
| Tonnage | 106 m³ |
| Maximum Range | 200 nm |
Vessel specifications
| Builder | McTay Marine Limited – Wirral |
| Launched | Originally launched in 1989, completely re-fitted in 2009 |
| Flag | St. Kitts & Nevis |
| Call sign / IMO | V4JQ6 / 8807961 |
| Vessel type | Survey / Diving Vessel |
| Operating code | MCA SCV Category 2 (60 miles from safe haven) |
Machinery / Propulsion
| Maximum speed | 12-13 knots |
| Cruising Speed | 13 knots |
| Main engines | 2 x 588 kw, ZF trolling gearboxes |
| Generators | 2 x 65 kVa & 1 x 30 kVa |
Miscellaneous
- Reverse Osmosis
- Water Plant
Accommodation
- Fully equipped galley
- Mess area, shower room
- 2 separate WC, storage space
- Laundry facilities
- 3 double cabins & 3 single cabins
- Max 9 beds per shift (max POB 12).
Tank capacities
- Fuel : 10 m³
Navigation and communication systems
- Satellite broadband
- Wireless network
- GSM broadband connectivity
- AIS
- VHF DSC radios
- Navtex
- Weather station
- C-MAP electronic chart plotters
- Dual frequency echo sounder
- Standart autopilot
- Safety equipment complies with the MCA code of practice for Small Commercial Vessels (SCV Code)
- Category 2 certification under the SCV code
- Full complement of immersion suits
Advanced equipment
- Data recording systems, housed in 19” racking units, protected by UPS
- Restricted CCTV monitoring of areas
- On-line survey room with easy access to the working deck
- Multiple monitors at each work station
- 6 m hydraulic A-Frame with a SWL of 1 ton
- Electrical anchor winch, 24 V
- Hydraulic side scan sonar winch
- Hydraulic crane
- Side sensors
